PRODUCT DESCRIPTION

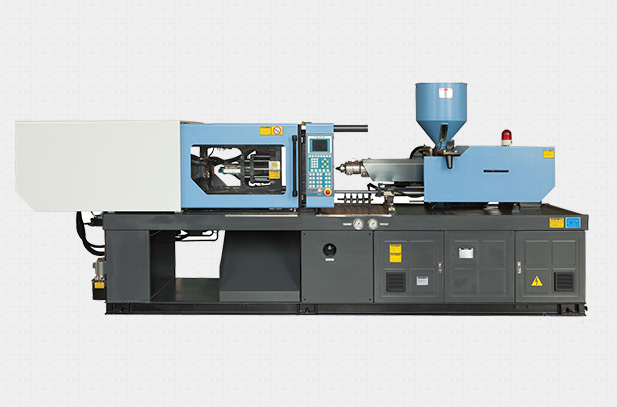

PET Preform Injection Molding Machine
Features:
1) Big L/D ratio screw, special design for PET resin plasticing
and injection.
2) Large hydraulic motor, for high speed preform production.
3) Muliti water manifolds for preform mold
cooling sufficiently.
4) big injection weight, for high capacity production
5) Enlarge ejector force and stroke, to make preform eject out
easily.
6) A-Z solution for bottle&cap production line.
PET Preform Injection Molding Machine Specifiction:
Screw diameter mm 60 65 70 Screw L/D ratio L/D 22.7 21 19.5 Shot weight gram 772 905 1050 Injection capacity cm3 848 995 1154 Injection pressure Mpa 207 176 152 Theoretical injection rate g/s 241 281 328 Plastic capacity g/s 35.2 43.3 51.8 Injection stroke mm 300 Screw torque N.m 2530 Max screw rotate speed r/min 150 Clamping force ton 300 Opening stroke mm 590 Space between tie bars mm 610×610 Mould height mm 220~630 Max daylight mm 1220 Ejector force ton 7.06 Ejector stroke mm 150 Ejector quantity 9 Oil pump motor kw 30 Pump pressure Mpa 16 Heating power kw 22 Machine size M 6.2*1.6*2.1 Machine weight ton 11 Oil tank capacity L 560 International designation 3000-1750
